The Asymmetric and Symmetric SAM indices.
What is the Asymmetric SAM
The Southern Annular Mode (SAM) is the main mode of variability in the Southern Hemisphere extratropical circulation (Rogers and van Loon 1982) on daily, monthly, and decadal timescales (Baldwin 2001; Fogt and Bromwich 2006) and exerts an important influence on temperature and precipitation anomalies, and sea ice concentration (e.g. Fogt and Marshall 2020). Its positive phase is usually described as anomalously low pressures over Antarctica surrounded by a ring of anomalous high pressures in middle-to-high latitudes, but on top of that zonally symmetrical description, the SAM holds noticeable deviations from zonal symmetry (Figure 1)

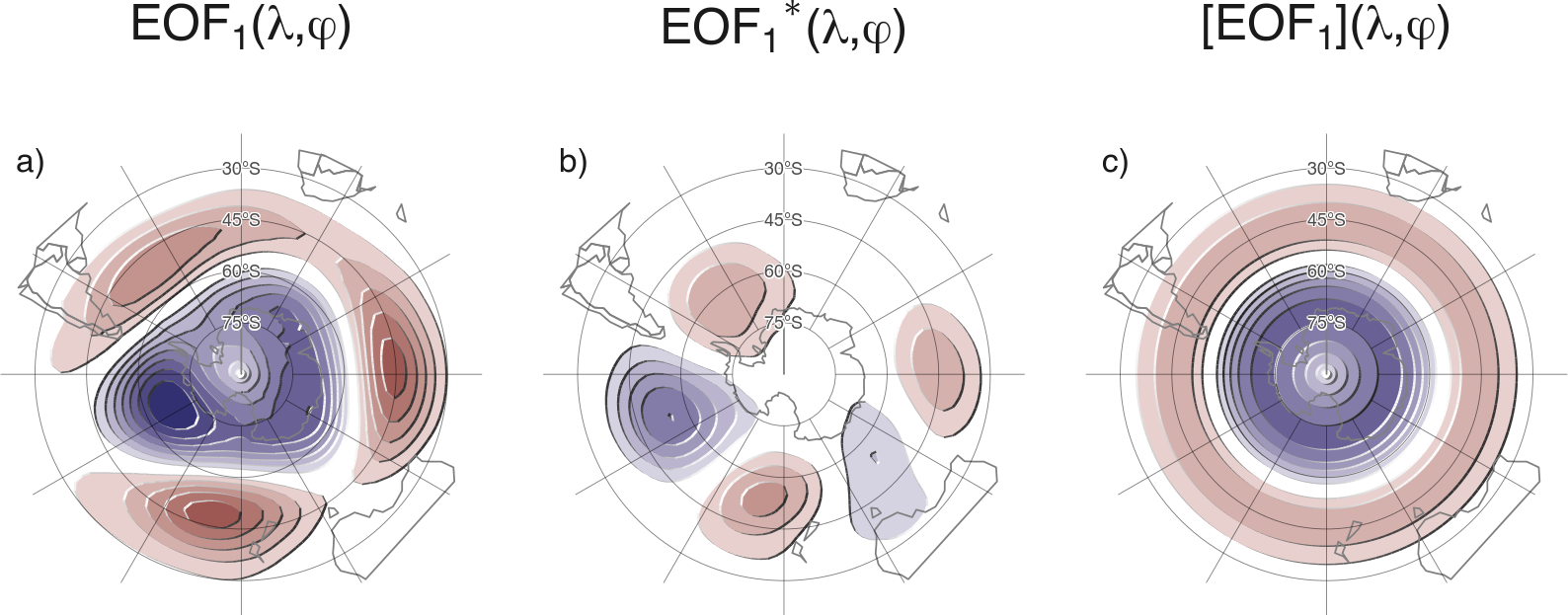

We derived a Asymmetric SAM index (A-SAM) and a Symmetric SAM (S-SAM) by computing the SAM as the leading EOF of geopotential height South of 20ºS (Fig. 1 a), splitting that field into it’s zonally asymmetric part (Fig. 1 b) and zonally symmetric part (Fig. 1 c) and finally projecting monthly geopotential fields onto each of these two new fields. The three indices are then normalized by dividing them by the standard deviation of the SAM index at each level. As a result, the magnitudes between indices are comparable, but only SAM index has unit standard deviation per definition.

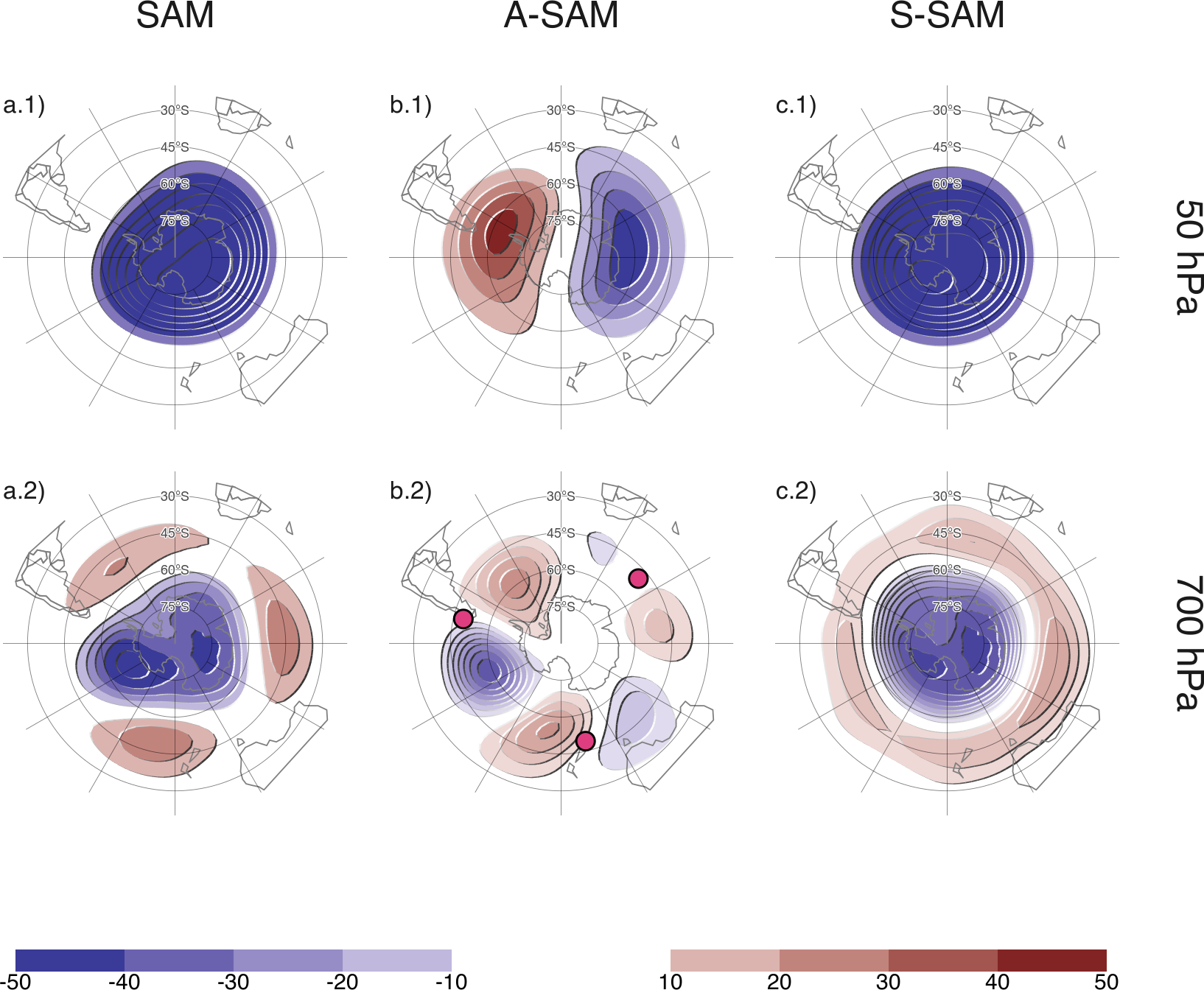

The resulting indices separate the zonally symmetric and zonally asymmetric part of the SAM (Figure 2) and are associated with different impacts on temperature and precipitation.
For more details, see Campitelli, Díaz, and Vera (2022) and the companion blog post.
Get the data
You can grab the monthly indices for the 1979 – 2018 period as used in Campitelli, Díaz, and Vera (2022) in csvy format here.
Real-time indices can be accessed via this form.
How to cite
If you use this data on your research, please cite it with
Campitelli, Elio, Leandro B. Díaz, and Carolina Vera. 2022. “Assessment of Zonally Symmetric and Asymmetric Components of the Southern Annular Mode Using a Novel Approach.” Climate Dynamics 58 (1): 161–78. https://doi.org/10.1007/s00382-021-05896-5.
Bibtex entry:
@article{campitelli2022,
title = {Assessment of Zonally Symmetric and Asymmetric Components of the {{Southern Annular Mode}} Using a Novel Approach},
author = {Campitelli, Elio and D{\'i}az, Leandro B. and Vera, Carolina},
year = {2022},
month = jan,
journal = {Climate Dynamics},
volume = {58},
number = {1},
pages = {161--178},
issn = {1432-0894},
doi = {10.1007/s00382-021-05896-5},
langid = {english}
}
